Specialised Lifting Equipment Design and Certification

Dynamic Engineering’s capabilities include specialised lifting equipment design and certification to suit our client’s requirements. These specialised lifting equipment is designed based on Australian Standards AS1418 and AS4991. Following are some examples of previously completed projects:

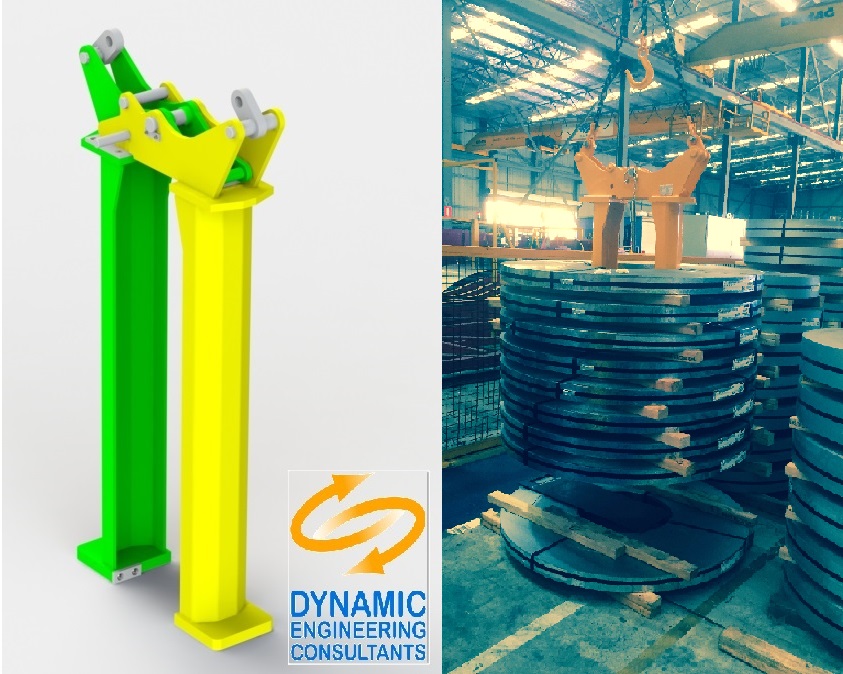

An example of a 5T capacity coil lifter is given below. This design enables the lifter to “fold inwards” when the coil is engaged, and then by lifting on the outside “ears” the lifter kicks out to enable the lifter to lift the coil vertically. The design was built and tested and is currently in daily use.

5T coil lifter: 3D model and actual lifting in action

5T coil lifter: 3D model and actual lifting in action

Another example of specialised lifting equipment is a 12T magnet spreader beam that was recently designed. This spreader beam has the capability of lifting 12T via 4 magnets. 4 Lifting points were used to improve stability.

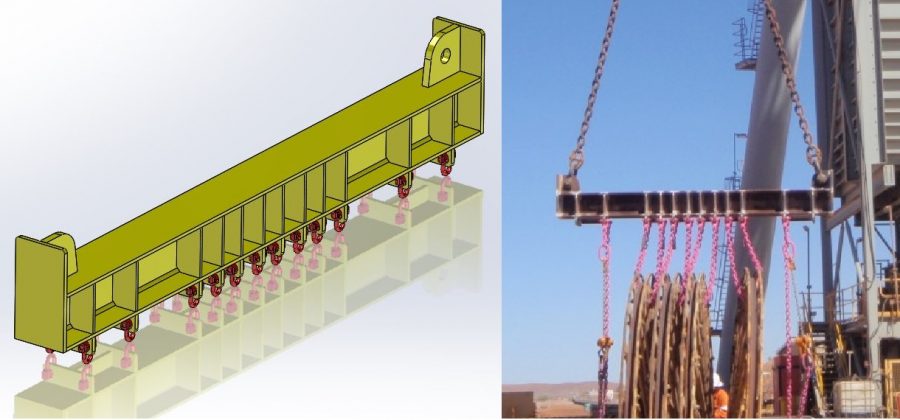

Below is an example of a purpose built lifting beam, used to remove a broken sheave assembly

35T lifting beam: 3D model and actual beam in operation

35T lifting beam: 3D model and actual beam in operation

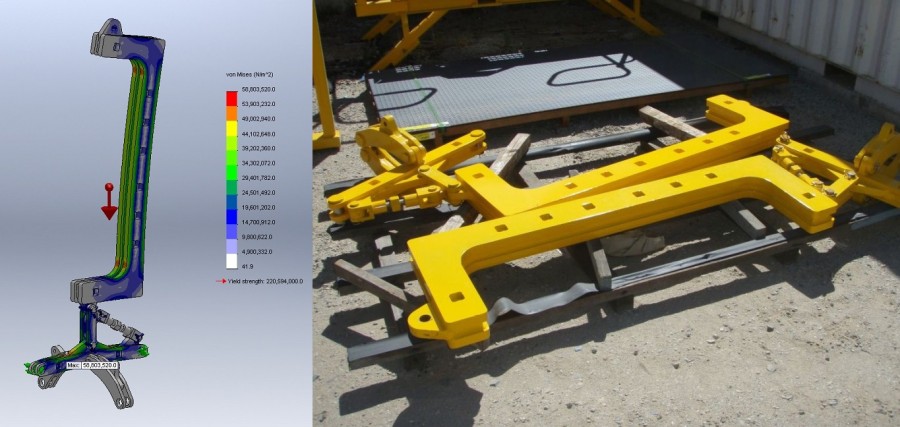

Below a stress plot is shown of an articulated alternator lifter along with the actual lifter, awaiting delivery.

5T articulated alternator lifter: stress plot and actual lifter

5T articulated alternator lifter: stress plot and actual lifter

Another example of specialised lifting equipment is a 12T magnet spreader beam that was recently designed. This spreader beam has the capability of lifting 12T via 4 magnets. 4 Lifting points were used to improve stability.

Adjustable magnet lifting spreader beam

Adjustable magnet lifting spreader beam
