Maintenance monorail systems

Dynamic Engineering Consultants can assist with the design of your maintenance monorail system in accordance with AS1418. A typical design would include a discussion with the maintenance team in which their requirements are recorded and noted. After this initial consultation we can produce 3D models for discussion / approval. From there we complete the detailed structural design and drawings. The extent of the drawing range from GA drawings down to shop drawing level. This is all performed in-house.

For simpler (straight) monorails no 3d modelling may be required, and we can skip directly to the detail design calculations. Below are some examples of completed or currently being designed monorail systems.

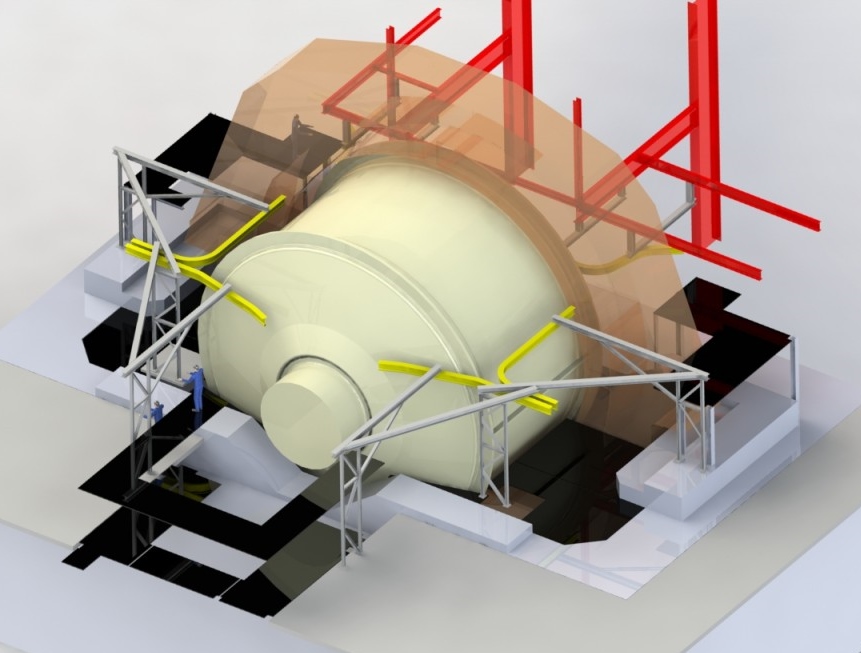

3D model of mill maintenance monorail system

3D model of mill maintenance monorail system



Mill maintenance monorail system - view 2

Mill maintenance monorail system – view 2

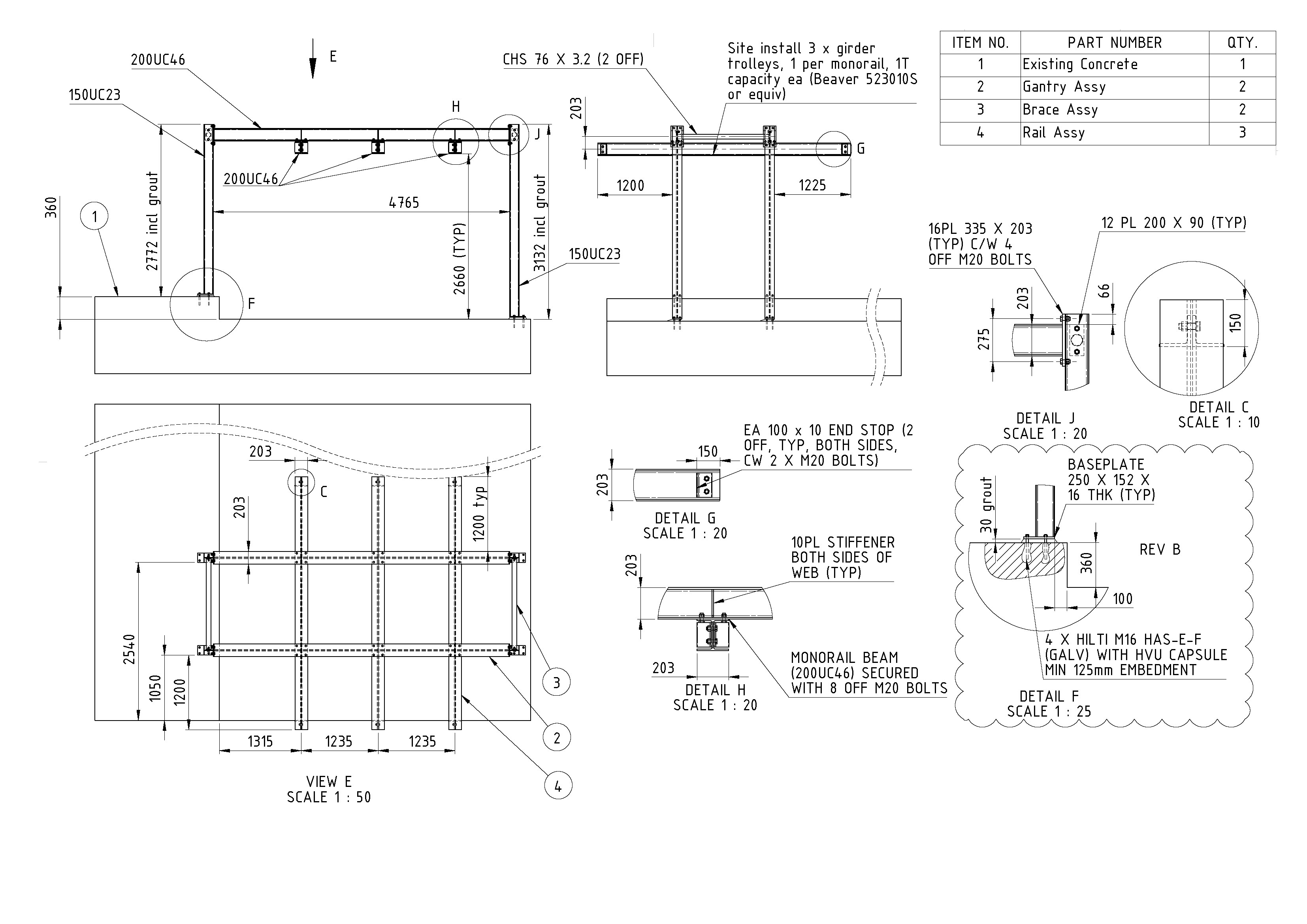

Typical monorail GA drawing

Typical monorail GA drawing
