From time to time a specific job requires a particular tool that is not available off the shelf. In these cases, in the interest of safety, the tool may have to be certified for certain loads. Dynamic Engineering can assist our clients by certifying tool designs for certain applications and loads. This maintenance tools design certification is always done against a specific Australian Standard and requires the following:
1) Fixed design (Generally the design is fixed in terms of an accurate drawing that states the processes (welding etc) as well as the material standard and grades.
2) Fixed or specified loads (Torque, Force etc).
Firstly, we model and analyse the tool with Finite Element Analysis. Afterwards the loads are applied and the stresses and deflections are determined. Working with our client, we tweak the design until the stresses are lower than what is permissible according to the Australian Standards. Finally, we generate a report for certification purposes (and drawings if required).
Below are some examples of tools:

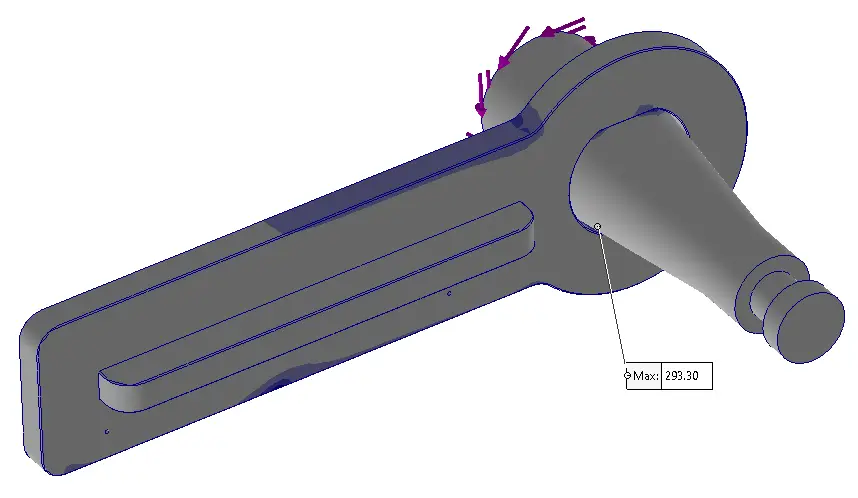

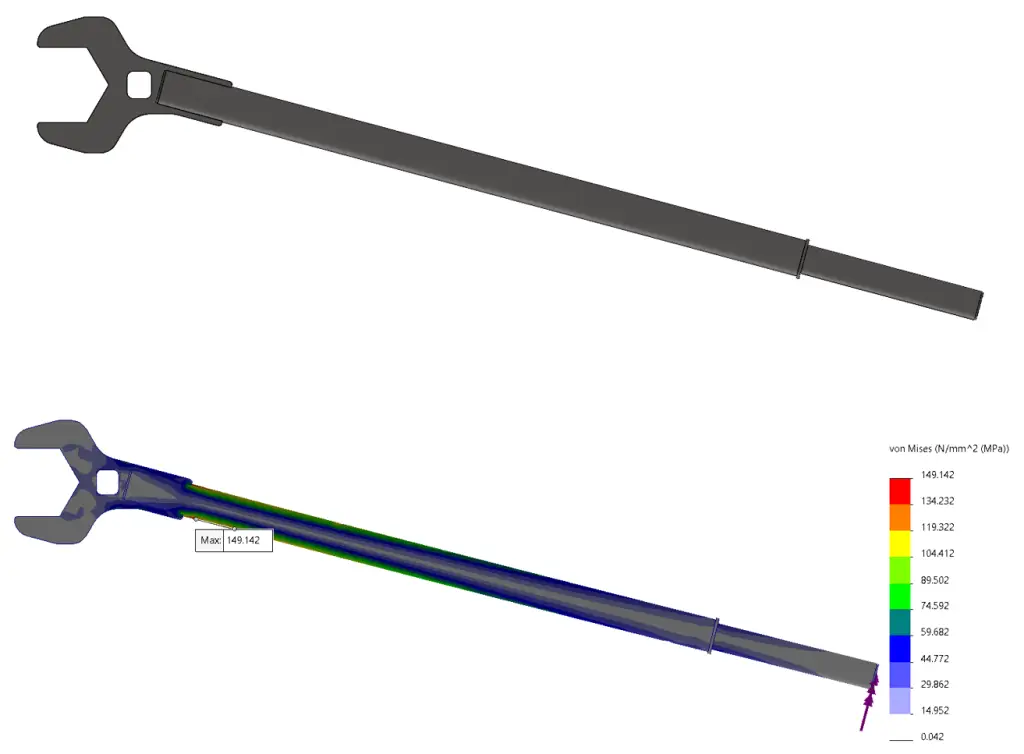

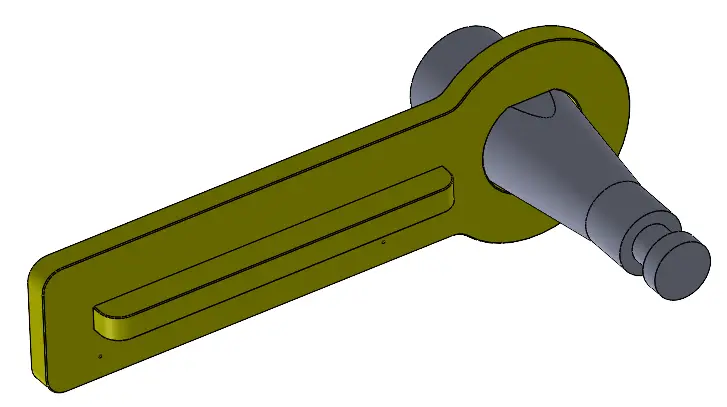

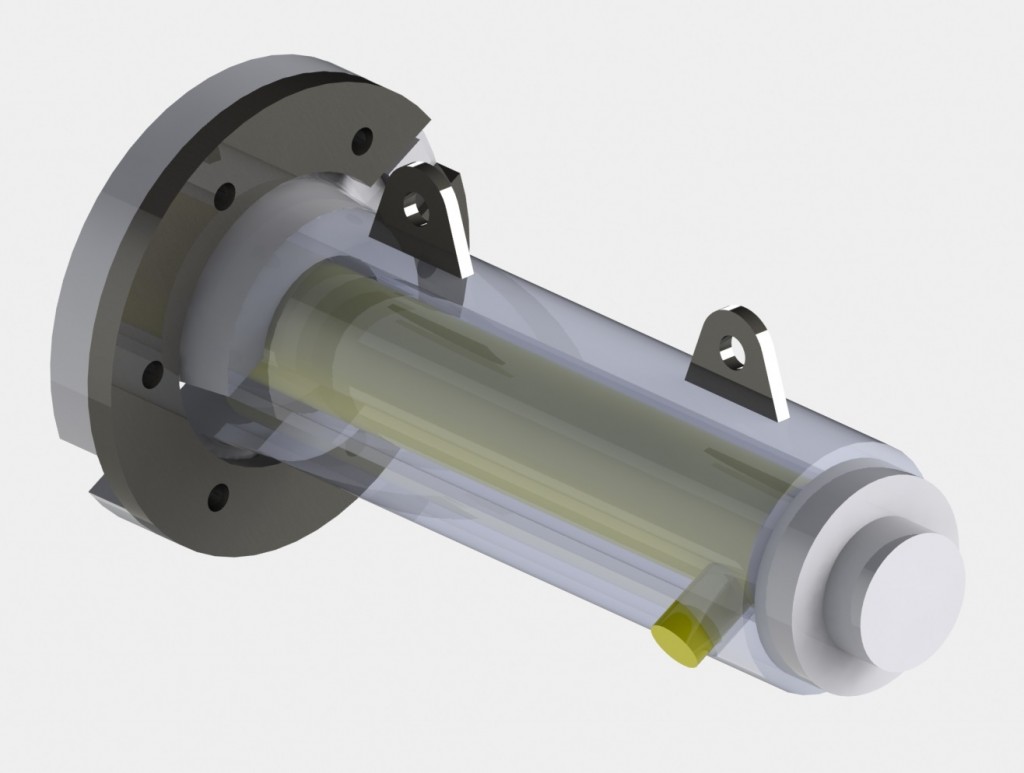

The picture below shows a 3D model of Hydraulic Push Puller:

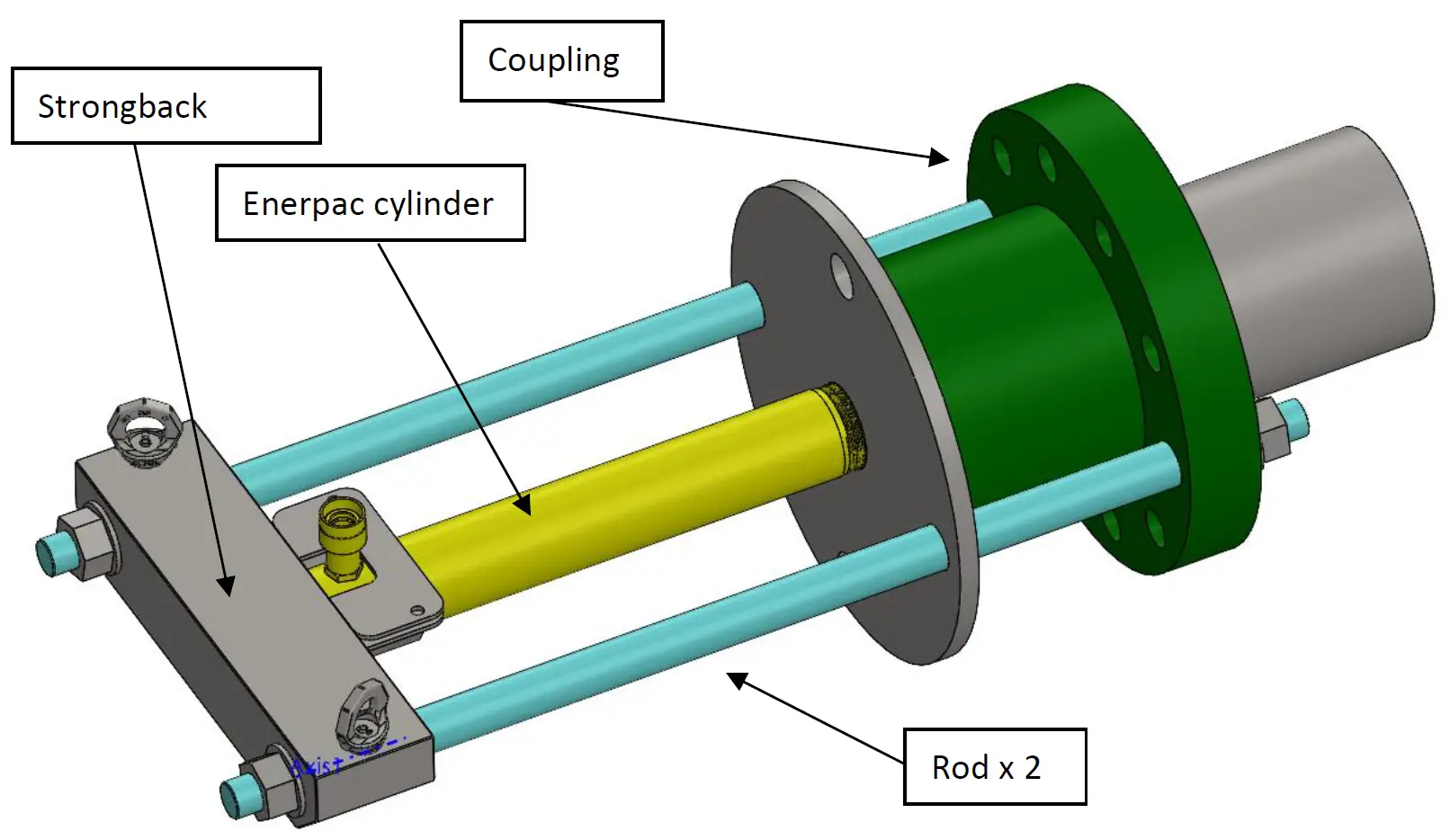

3D model of Hydraulic Push Puller
The image belows shows the stress plot:

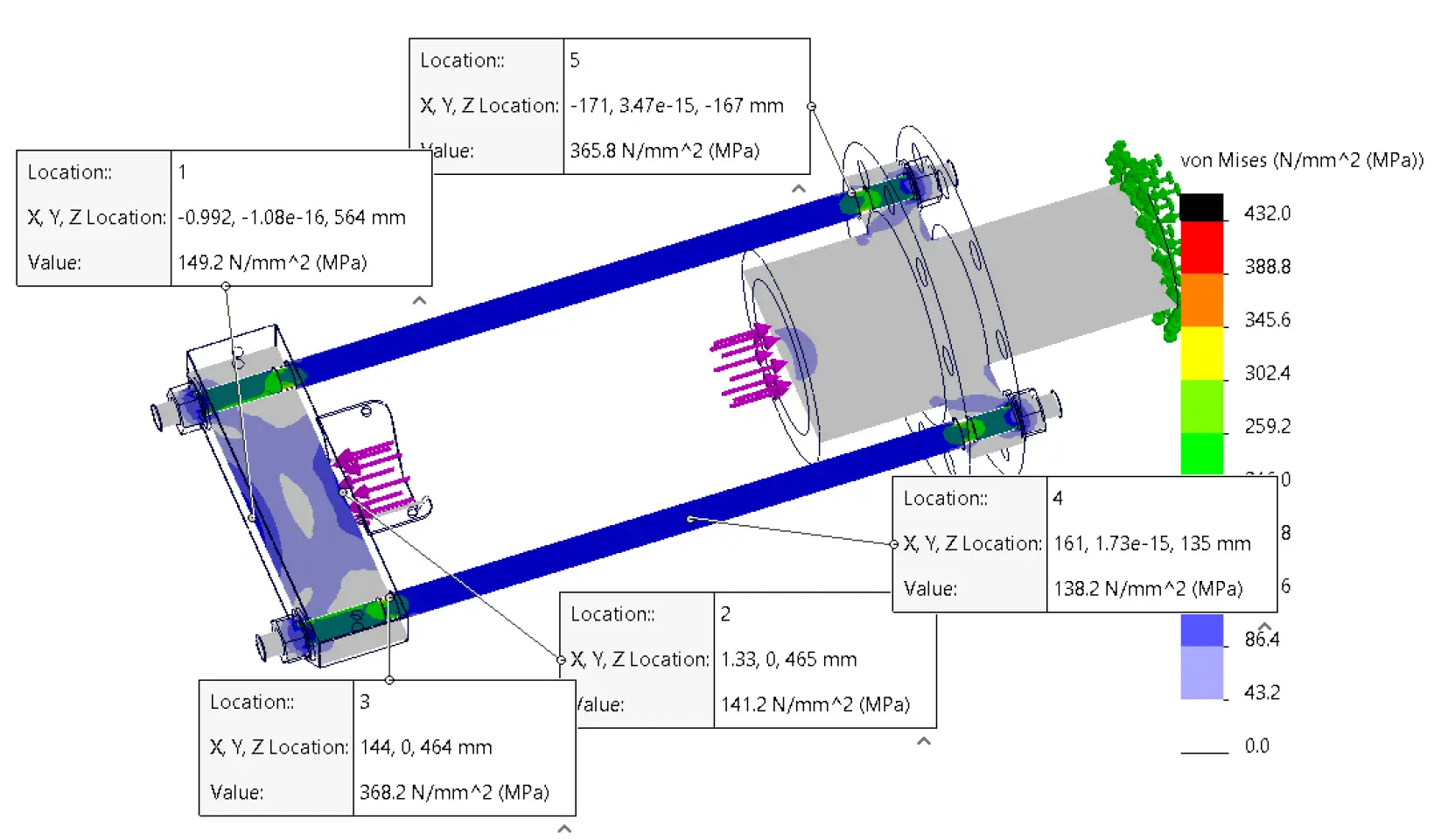

Stress plot of push puller under design load
The picture below shows a 3D model of a lifting bracket
3D model of lifting bracket
The following image shows the stress plot:
Stress Plot of Lifting Bracket (including bolt stress)
The above are just some of hundreds of design certification of maintenance tools we have completed. Therefore, if you have a specific maintenance tool that you would like to get certified, please contact us.
